K-KNIT Fully Fashioned Computerized Flat Knitting Machine Single System
X
K-KNIT Fully Fashioned Computerized Flat Knitting Machine Single System Price And Quantity
- 7.00 - 70.00 INR/Set
- 1 Set
K-KNIT Fully Fashioned Computerized Flat Knitting Machine Single System Trade Information
- 20 Set Per Month
- 70 Days
Product Description
K-KNIT KK-1S Fully Fashioned Computerized Flat Knitting Machine to our customers. This high performance machine is available in Single Carriage and Single System for making the Basic Range of Fashion Knitwears.
KK-1S is available in 2 options With or Without Tuck Facility.

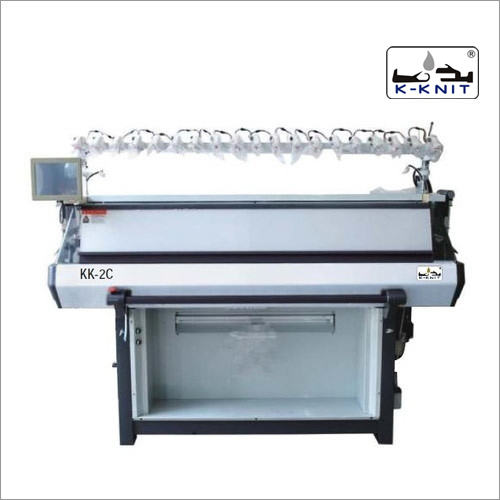

K-KNIT KK-2S : Computerised Flat Bed Knitting Machine - Single Carriage 2 Systems
Specification :
- Popular Gauge(s) : 10G, 12G, 14G, 5/7G Multi
- Max Knitting Width : 36", 52", 72", 80" inches
- Knitting Speed : 32 levels of independent Selections, Controlled by AC motor, max 1.6m/s
- Racking: Controlled by servo-motor, 2 inches racking on both side (Right and Left), with smaller adjustments of 1/2 , 1/4 & 3/4 inches.
- Encoder : Advanced coder adopted
- Transfer Function : Each system would be completed with transfer, Knit, Tuck and Miss. This Transfer feature is available in both Magnetic & Motorized types.
- Variable Stitch is available as an option.
- Yarn Stitch Density Adjustment : Controlled by step motor, the length of the Knitted Yarn, adjustable range: 0-650 grade, can more precisely control the yarn length.
- Sinker System: Controlled by a step motor, sinkers can be adjusted to the best knitting effect according to different yarns
- Takedown or Fabric Winding System : Computerized Program Instructions, controlled by a step motor, selectable of 32-section tractions, adjustable range: 0-100
- Protective System: Automatically Alarm in case of yarn-breakage, joints, floats, reverse winding, finishing of the woven part number, non-return of the moving bed, stitch conflicts and program error, etc., along with a safety self-locking protective device.
- Drive way: Driving in-phase with come-and-go, adjustable of knitting at will Needle choose: Controlled by computer, electric magnet needle choose system with high efficiency, 8 step Needle Selection at random
- CPU: Multi duty DSP process chip
Controlling system :
- Screen Display: Adopts 10 inches color LCD screen, figure interface, Input device : USB or internet, the system memory can reach to 256MB input
- Monitoring menu: Each kind of operating parameter is shown in English and adjusted at any time when the machine is running, create conveniences for operation as much as possible
- Design system and controller software are visual and easy to understand and upgrade. Current: Single phase 220v, triple-phase 380v, adopts advanced CMOS technology, having memorizing function at the power-off moment
- Power: 1.2KW/h+10%
Options :
- Advanced OS with Compatibility with Stoll/Shima Software Designs
- "Touch screen" without Keyboard
- Advanced Roller Storage Feeders for Smooth Yarn Flow
- "Jacquard Collar" Knitting with Shaping
- "Shoe" Upper Fabric Knitting
- Special Structures in 3D For Shoe Upper Fabrics
