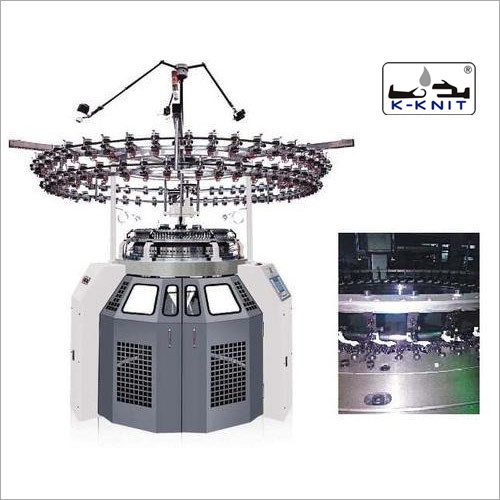

Single Jersey Open Width Circular Knitting Machine : KK-SC

Product Description

Single jersey open width circular knitting machine: KK-SC is produced by T Khanna and Co. With ornate stitching, it is primarily used to make fabric or clothes. Due to its easy and smooth functioning, this machine can accommodate a variety of yarn types, latch needles etc. Thanks to the steady and ongoing use of machine, which has increased its dependability, clothing is produced in vast quantities. Single jersey open width circular knitting machine: KK-SC can knit single jerseys quickly and precisely enables the production of clothing and fabric. Our equipment can specifically produce fabrics for clothing.

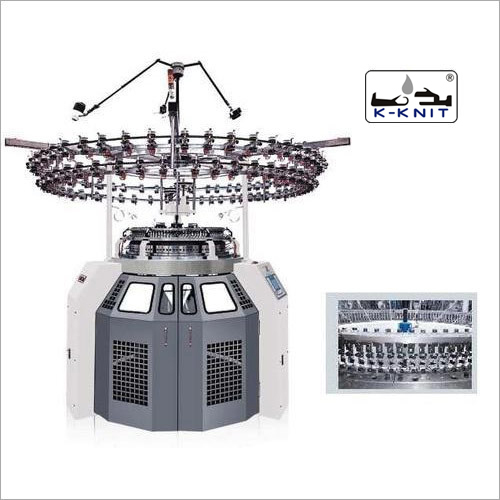

K-KNIT KK-SC : Single Jersey - 4 Tracks "Open Width" Circular Knitting Machine

Machine Direction : Machine can be supplied in either Clockwise or Anti Clockwise Direction, according to the Customers request.

• Structure : The Machine Incorporates Advanced CNC and special surface treatment ensuring long term stability and durability.
• BED & Gear : The bed and its gear are oil-bathed with hi-grade Lubricant Oil, so that the machine operates smoothly with low noise leading to an Longer life of the machine gear etc.,
• Cylinder : It is very durable as this is made of special alloy under precision processing and heat treatment
• Cams : All cams are made of Japanese Alloy Die Steel and processed by CNC under CAD/CAM and heat treatment. Double Support Sinker Cams for Long Sinker life are Standard Fitment.
• Cam Tracks : The Standard Machine Models are supplied in 2, 3 or 4 Tracks Variants.
• Knit Structures : Various Knit Structures can be created like Pique, Double Pique, Honey Comb, 2 Thread Fleece etc., by just by changing of Cams, which are supplied as Standard Equipment.
• Central Stitch Control : Latest design of Central Stitch is delicate, simple and stable and is supplied as an Standard Equipment.
• Yarn Feeding / Creels : Storage Yarn Feeders with Option of Normal or Non-Overlapping type Storage Feeders along with Yarn Tension and clearers along with Creel in Aluminum or PVC in D8 and D9 type.



High Speed :

Outlook : With High Quality Metallic Paint coated and baked after several processes as brushing, dipping and painting. The surface of the machine is strong and corrosion free against Knitting Oil while the machine outlook is smooth and elegant.

POPULAR DIAMETER(s)	3 FEEDER / Inch	4 FEEDER / Inch	POPULAR GAUGE(s)	SPEED / RPM
30" to 36"	90F-108F	120F to 144F	24G to 46F	15 to 30 RPM

Quick Change

• Single Jersey Circular Knitting Machine - 4 Tracks : 36"x108F can be converted into 3 Thread Plated Fleece in 36"x108F or Plated Velour / Terry 36"x54F
• Single Jersey Circular Knitting Machine - 4 Tracks : 36"x144F can be converted into Polar Fleece / Terry 36"x72F or Course Gauge - 4 Tracks : 36"x72F

Options :

• "Tubular" Takedown Winders - Roll & Fold Type
• Extra Cylinder(s) in Different Gauge with or without Needle/Sinkers
• Ceramic or Zirconium Yarn Feeders
• Lycra / Spandex Feeders
• Specialised Storage Feeder for Premium Knitted Fabrics
