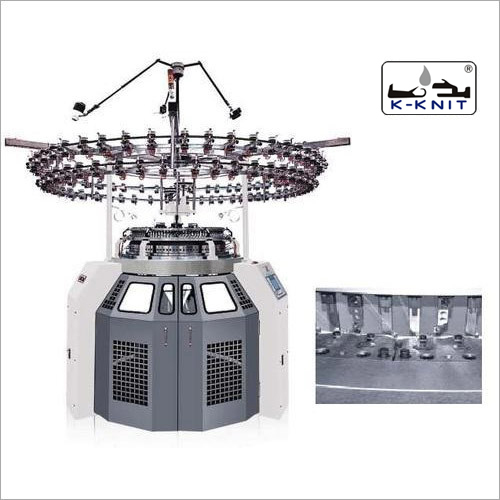

K-KNIT High Speed Circular Knitting Machine - Single Jersey Jacquard 3 Way : KK-SE / KK-STE

Product Description

K-KNIT High Speed Circular Knitting Machine - Single Jersey Jacquard 3 Way : KK-SE / KK-STE

• Structure: Incorporates Advanced CNC and special surface treatment ensuring long term stability and durability.
• BED & Gear: The Cylinder Bed and its gear(s) are Oil-Bathed with HI-Grade Lubricant Oil so that it operates smoothly with low noise leading to a Longer life of the machine gear etc.,
• Cylinder: Is very durable and is made of Special Alloy under precision processing and heat treatment
• Cams: Made of Japanese Alloy Die Steel and processed by CNC under CAD/CAM and heat treatment.
• Knit Structures: Huge possibility of Knit Structures with the help of Computer Aided Designing for creating practically un-limited Jacquard options Software for Jacquard is provided with the machine along with the training to help achieve the desired results.
• Central Stitch Control: Not Available
• Yarn Feeders: Yarn Feeders with Ceramic Inserts are installed on Yarn Feeder Ring.
• Needle Selection: KK-SE, ONLY 3 Way Knit Selection by Actuators are provided in Cylinder. KK-STE has the possibility of Sinker Selection by Actuators for Terry "Loop" Jacquard.
• Mesh Kit: Mesh Kit is supplied as Option.
• Yarn Feeding /Creels: Motorized Storage Yarn Feeders along with Yarn Tension and clearers along with Creel in Aluminum Tubes.


Popular Variants :

• KK-SE in 3 Way : 34"x72F, 38" or 40"x108F
• KK-STE : 40"x52F

Options :

• Lycra / Spandex Feeders
• "Tubular" Takedown Winders - Roll & Fold Type
• SF2 Motorised Storage Feeder
• Auto Striper + Storage Feeders

Attachments / Kits :

• Auto Striper for Jacquard with Auto Striper Fabrics
